Surge protection primarily prevents damage to equipment from transient high voltage (such as lightning strikes), protectors can reduce voltage to a safe range within nanoseconds, suitable for protecting electronic devices, approximately 20% of electronic device damage is related to surges. Voltage protection, on the other hand, targets long-term voltage abnormalities (overvoltage or undervoltage), preventing damage by regulating or cutting off the power supply, particularly useful for protecting household appliances, about 30% of appliance failures are related to unstable voltage.
What is surge protection
Surge protection is primarily to protect the equipment from any high voltage spikes (briefly). These short-term voltage peaks in power systems are a standard feature of surges, and they happen due to lightning, switch operations, or other sudden events. In practice, the surge voltage can be several times or even thousands of volts higher than what is considered to be its normal operating voltage, and these nanosecond to millisecond-lasting voltage peaks are long enough to literally fry sensitive electronics in your gear. Studies have shown that the voltage can reach tens of thousands or even hundreds of thousands of volts at a moment, such as during lightning strikes, which will easily cause damage to the equipment's insulation layer and electronic components, leading to the destruction of the entire device immediately.
Working principle of surge protection

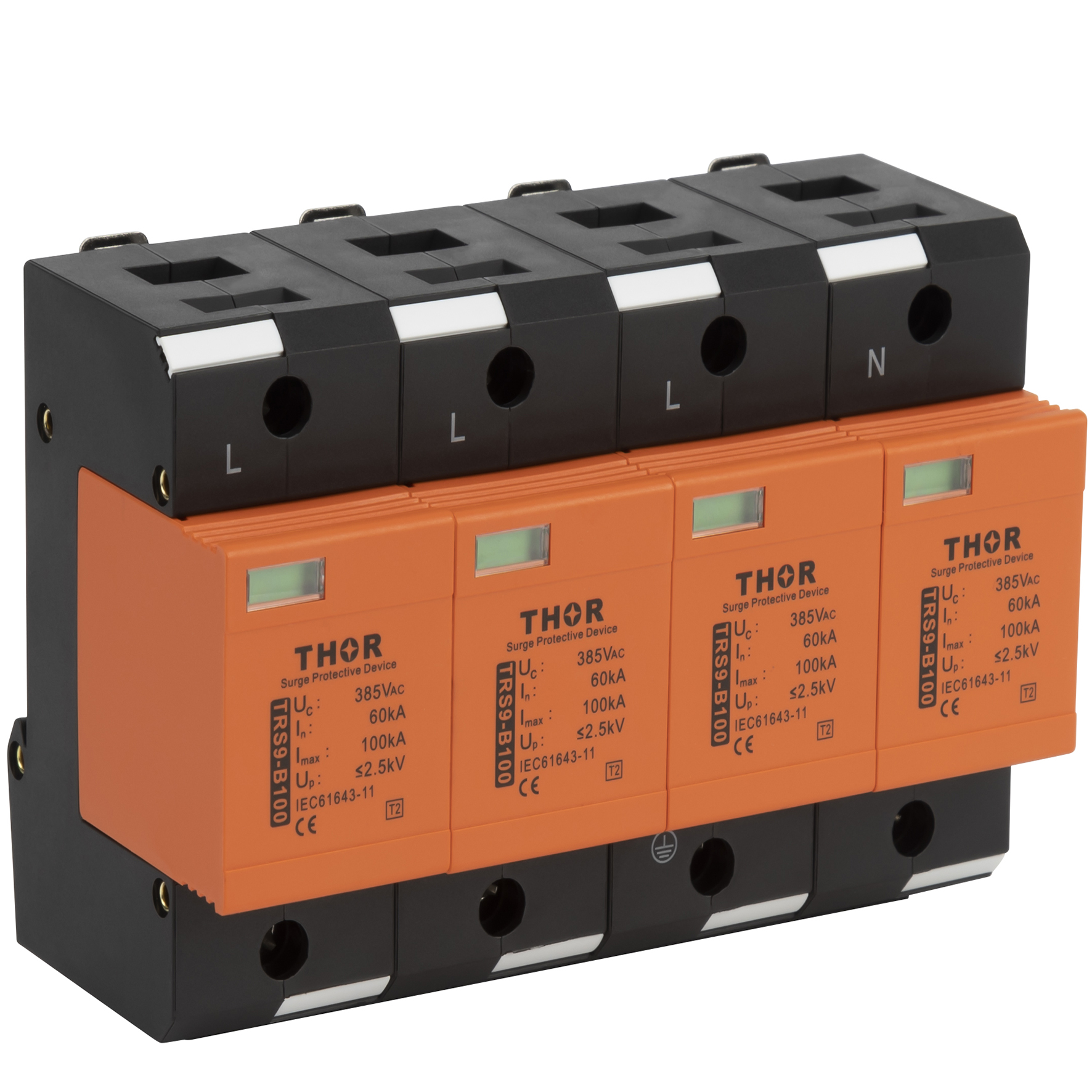

Surge protection devices (SPD) provide the reduction of instantaneous overvoltage and redirect excess current to the ground, preventing equipment damage due to high voltage. Many surge protectors use MOVs and GDTs, which can detect rapid changes in voltage levels within four nanoseconds to keep the spikes lower than certain thresholds. A fast MOV can typically clamp thousands of volts down to hundreds in tens of nanoseconds, offering excellent protection for downstream equipment.
Applications of surge protection
Surge protectors are used in a variety of applications to prevent voltage surges:
-
Electronic device protection: Common household electronic equipment, such as computers, televisions, and audio devices, typically have low voltage tolerance and are extremely susceptible to transient voltage increases. A lightning strike can immediately send surge voltage into these devices, causing irreversible damage, often leading to data loss or permanently non-functional equipment. Because of this, it is critical to use surge protectors with such electronics.
-
Industrial control systems: Surge protection is crucial in industrial environments where the smooth running of control systems needs to be maintained. In these systems, surge protectors are commonly used to shield vulnerable control circuits from transient voltage surges. Surge events are especially concerning in high-risk industries, such as petrochemicals, where significant equipment losses and production halts could result, making surge protectors essential.
-
Communication equipment and data centers: Data centers and communication equipment have strict power quality requirements. A very short voltage surge can be enough to delete important data or even damage devices. In the event of downtime, with costs soaring for data centers (some $20K per outage), surge protectors are key to stabilizing systems in these environments.
What is voltage protection
Voltage protection is mainly used to prevent equipment from being damaged under long-term abnormal voltage conditions. Voltage anomalies typically include overvoltage or undervoltage due to unstable power systems, equipment failures, etc. If voltage abnormalities last for a long time, the power components of equipment will overheat, their life expectancy may decrease, or they can even get permanently damaged. Studies have concluded that every 10% increase in voltage above the rated voltage reduces equipment life by nearly half.
Working principle of voltage protection
Voltage protectors can detect the voltage of the power system in real-time, then cut off the connection and adjust the voltage to the normal level. Common voltage protectors directly reduce high voltage to a safe level with a buck circuit or maintain the proper functioning of the equipment by automatic switching to a backup power supply in case of low voltage. Voltage protectors can react in milliseconds when they encounter abnormal voltage levels, saving equipment from damage after prolonged exposure to inadequate voltage. Advanced voltage protection solutions, equipped with sophisticated algorithms, can have a response time of less than 5 milliseconds, helping improve voltage stability immediately.
Applications of voltage protection
The use of voltage protectors is very common, and there are some typical applications:
-
Household appliances: Home appliances like air conditioners, refrigerators, and other equipment are sensitive to voltage changes. The life of these appliances could be affected by premature aging or damage due to prolonged voltage abnormalities. Voltage protectors are widely used in household electrical appliances to help prevent damage from unstable voltage and maintain normal operation and long service life.
-
Industrial production: In automated industries with motors and transformers as critical equipment, the operation of industrial production lines must be maintained. Voltage protectors can quickly detect abnormal input voltage, adjust the output power supply, or cut off power to prevent equipment from becoming unavailable due to failure brought on by insufficient or unstable electricity.
-
Data centers and communication facilities: Data centers represent areas where consistent voltage is highly important to ensure uninterrupted operation. Voltage instability could cause equipment damage and data loss, or even result in complete system shutdowns. In these critical infrastructures, voltage protectors are indispensable, tirelessly monitoring and regulating correct voltage levels to minimize equipment failure and promote business continuity. For example, facilities running voltage protection experience more than 50% fewer unplanned outages.
Surge protection vs Voltage Protection
-
Protection target: Surge protection is for instantaneous voltage peaks, which are common events during load shedding in the morning and evening. Voltage protection addresses long-term voltage instability. During a lightning strike, surge protectors can control the voltage within nanoseconds to keep it within the device's tolerance range, whereas voltage protectors prevent equipment from being exposed to unstable voltage conditions over time.
-
Working principle: Surge protectors reduce sudden over-voltages to a level that the device can handle, while voltage protectors regulate or cut off the power supply to manage persistent voltage abnormalities. A surge protector with high efficiency can suppress a few thousand volts to a safe level, while voltage protectors constantly monitor and adjust voltage levels in systems with variable outputs, preventing permanent instability.
-
Application scenarios: Surge protection is more commonly used in areas with frequent lightning and transient voltage surges, while voltage protection is typically used to prevent equipment from operating under unstable voltage conditions. When used in conjunction with surge suppressors, voltage protectors can provide comprehensive protection from nearly all types of power anomalies faced by data center equipment, leading to reduced downtime and data loss.
