Install an HVAC surge protector at the electrical panel for whole-house protection (handles up to 50,000 amps), near the unit for direct defense, or on the thermostat circuit to safeguard control systems. Typical costs range from $150–$700, preventing repairs like a $1,500 compressor replacement.

Near the HVAC Unit

The average household in America experiences up to 20 power surges per year. Surging, created simply by lightning striking, has recorded voltages as high as 20,000 volts in one strike. Most HVAC systems are designed around standard residential voltage: 120-240 volts. This disparity, if not properly protected, can burn out essential parts like the compressor in an instant, which costs in the range of $1,200 to $2,500 to replace alone.

For a 5-ton central air conditioner that consumes some 6,000 watts of electricity, the surge protector should support at least 240 volts and 30 amps. Higher joule-rated models, around 1,000 to 2,000 joules, are much better at withstanding extreme surges. A high-quality device, costing in the range of $150 to $300, would be a rather cost-effective solution against spending upwards of $10,000 or more for the replacement of an entire HVAC system in case of a catastrophic surge.

Installation includes hard wiring to the disconnect box or electrical supply line near the unit. Florida homeowners surveyed reported an average annual cost of $2,000 in HVAC repairs related to power surges and surges of this type may be reduced in their impact up to 80% with the appropriate installation of a surge protector.

For example, surge protectors may need to be replaced every three years in areas with unstable power grids, while they could last up to five years in more stable regions. Regular checks prevent unexpected failures and extend the overall life of the HVAC system, which is averagely 10 to 15 years with proper care.

At the Electrical Panel

The whole-house surge protector, which is installed at the panel, would handle surges up to 50,000 amps, whereas the plug-in surge protectors are rated for usually 15,000 amps, which could cost between $5,000 and $10,000 to replace if a surge causes serious damage.

Electrical panel-mounted surge protector installations are usually in the range of $300-$700 dollars for an electrician's labor and travel expenses. A power surge has destroyed a control board alone; replacement will be in the region of $500-$1,500 dollars to replace. But it can actually make a grid event where the voltage spikes at 6,000 volts safe-very close to 600 volts-with an accurately rated surge protector, hence safeguarding the most sensitive electronic equipment.

Most of the models have LED indicators or alarms that show when the device has gained a surge and should be replaced. This is very important for areas with frequent power fluctuations, which may reduce the life of a protector to 3 to 5 years. Replacing the device as soon as possible ensures protection without breaks and extends the life of your HVAC system up to 20 years with premium models.

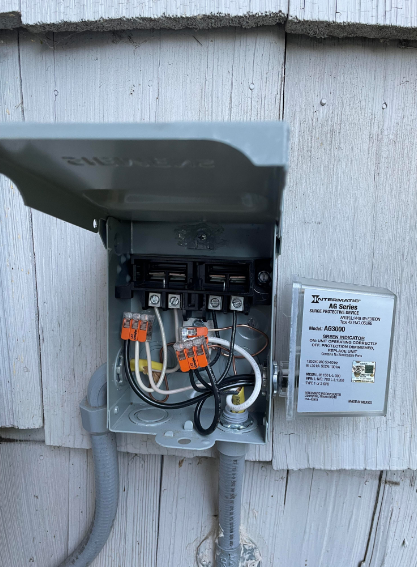

On the Disconnection Box

A surge protector installed on the disconnection box can respond within nanoseconds to a surge event and limit the voltage spike to levels safe for HVAC components. This is important in protecting very sensitive parts such as the compressor, which costs in the range of $1,200 to $2,500 to replace, and the fan motor, which costs in the range of $200 to $700 to replace.

Surge protectors installed in the disconnection box are designed to handle up to 600 volts and surge currents as high as 10,000 amps; if the lightning strike surge is 20,000 amps, for example, then the protector would absorb a major portion of this, allowing only a minimal energy to pass through. Thus, the higher ratings of 1,000 to 2,000 joules that different models have allow them to operate more effectively here, especially where lightning storms prevail.

The cost of installing a surge protector on the disconnection box averages between $100 and $30. If a surge ruins the control board of the HVAC system, replacement costs range from $400 to $1,500, depending on the size and complexity of the system. If a surge also damaged the line of refrigerant, repairing that can add another $300 to $600.

Inside the Compressor Panel

The compressor panel contains sensitive parts like the capacitor, contactor, and circuit board. These components can be destroyed by a voltage surge as small as 400 volts, and they are very expensive to replace. For instance, replacing a damaged capacitor may cost between $100 and $400, while a fried circuit board may require up to $1,500.

The good quality surge protectors installed in the compressor panel are normally rated to handle up to 600 volts and surge currents up to 10,000 to 20,000 amps. A surge due to a lightning strike generating 15,000 amps will be dissipated by the protector before it damages the internal components. For a typical 5-ton central air conditioning system operating at 240 volts and pulling about 30 ampsy.

The cost of installing a surge protector inside the compressor panel generally falls between $150 and $400; that seems like an outrageous upfront cost, but it pales into insignificance compared to replacing a compressor since a replacement usually ranges between 1,200 and $2,500, protection will increase the useful life of the compressor generally running between 10 to 15 years.

This means the devices may have to be replaced every 2 to 3 years for places that often have thunderstorms, like the southeastern United States. Regular checks assure protection continuously and generally last for 10 to 15 years with good maintenance.

On the Thermostat Circuit

New programmable or smart thermostats can run from $100 to $300, and a surge may make them not work. These newer versions are much more expensive to replace compared to the minimal cost of a surge protector, which, for this circuit, usually is in the area of $50 to $150.

The voltage that a thermostat circuit functions with is different, usually only 24 volts, from that of the other parts of an HVAC system. This will handle voltage spikes up to 600 volts on this circuit and prevent possible damage to the thermostat and other connected components such as relays and transformers. A voltage spike during a grid event that raises the line to 300 volts can easily fry the thermostat or short out the transformer, which is another $150 to $400 to replace.

This small addition can save a home hundreds of dollars each year in repairs and replacements for areas that get a lot of power surges, like the Midwest during storm seasons. The life expectancy of the surge protector on the thermostat circuit depends on the number and severity of the surges but generally ranges from 3 to 5 years.
