NL1 Series DC Isolator Switch is applied to 1~20 KWresidential or commercial photovoltaic system, placed betweenphotovoltage modules and inverters. Arcing time is less than8ms, that keeps solar system more safe. To ensure its stabilityand long service life, our products are made by componentswith optimum quality. Max voltage is up to 1200V DC. It holdsa safe lead among similar products.
Feature
IP20 Protection Level
Din rail mounted
Switch body for 4P CB4N or CB8N
2Pole,4 Poles are viable (Single IDouble String)
Standard:IEC60947-3,AS60947.3
DC-PV2,DC-PV1,DC-21B
16A,25A,32A,1200V DC

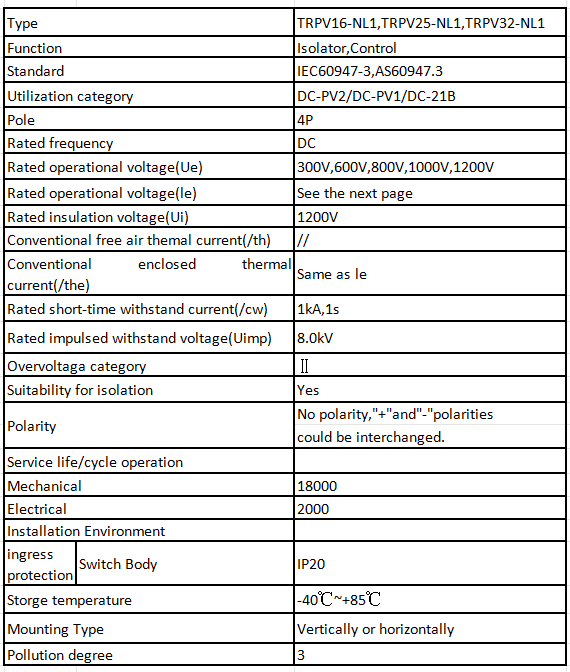

Electrical Characteristics

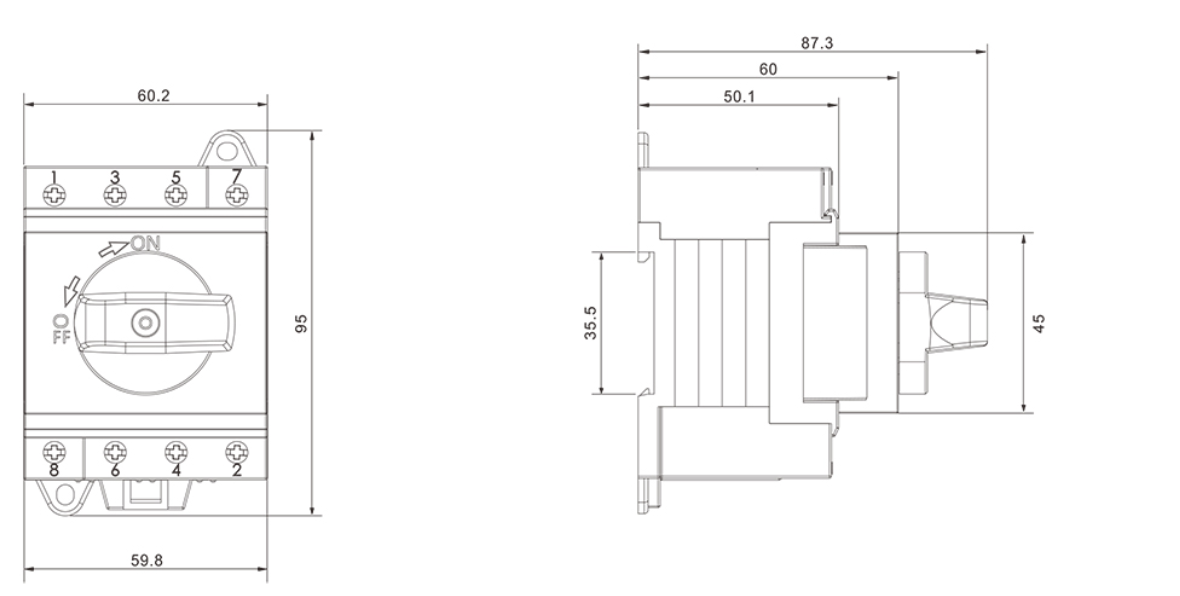

Dimensions(mm)
ZHEJIANG THOR ELECTRIC.CO.,LTD.
