Circuit Breaker

TRDM5PV-400-3300

  • Not over altitude 2000m
  • The allowable ambient temperature is not higher than +70℃ and not lower than -45℃ (If the temperature exceeds +40℃, use with reduced capacity, please consult with the manufacturer for details)
  • Atmospheric conditions: For example, 90% at 20°C. Taking into account the condensation on the surface of the product due to temperature changes, when the ambient temperature is 40°C, the relative humidity of the atmosphere does not exceed 50% A higher relative humidity is allowed at lower temperatures.
  • The pollution degree:Level 3
  • The installation class:III
  • Installation magnetic field: The magnetic field at the installation location does not exceed 5 times the geomagnetic field in any direction
  • In a medium without explosion hazard, and there is no gas or conductive dust in the medium that is enough to corrode metal and destroy insulation.
  • Without wind and snow erosion
  • Installation conditions: It can be installed horizontally and vertically. There should be no significant impact and vibration at the installation location, and it must not be installed in flammable and explosive places.
  • The circuit breaker has an isolation function

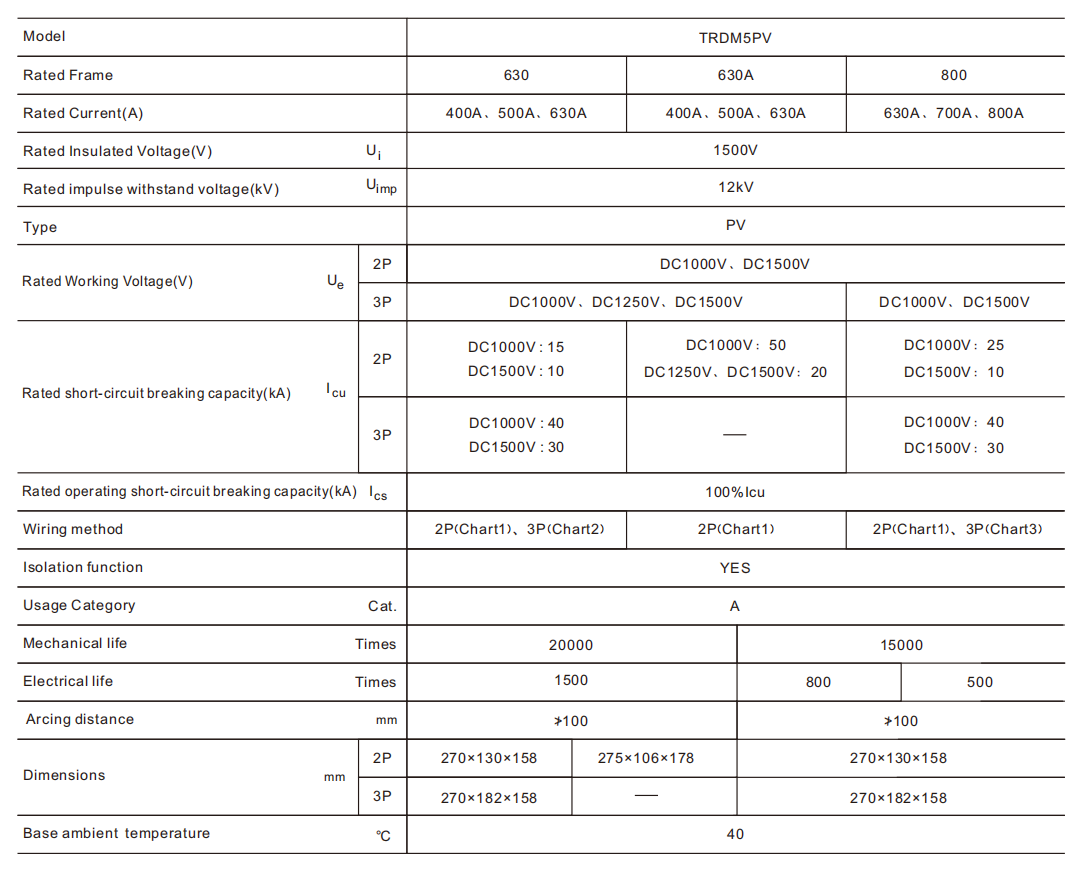

TRDM5PV Series DC dedicated circuit breakers (hereinafter referred to as circuit breakers) are used in DC power grid circuits
with rated voltages DC250V~DC1500V and rated operating currents 63A~800A. This circuit breaker has overload long delay
and short circuit protection functions and is used to distribute electric energy. and protect circuits and power equipment from
overload, short circuit and other fault hazards. The product complies with GB/T14048 .1,GB140048.2 & EC60947-2.

Device Category
